BDP Sump

Description

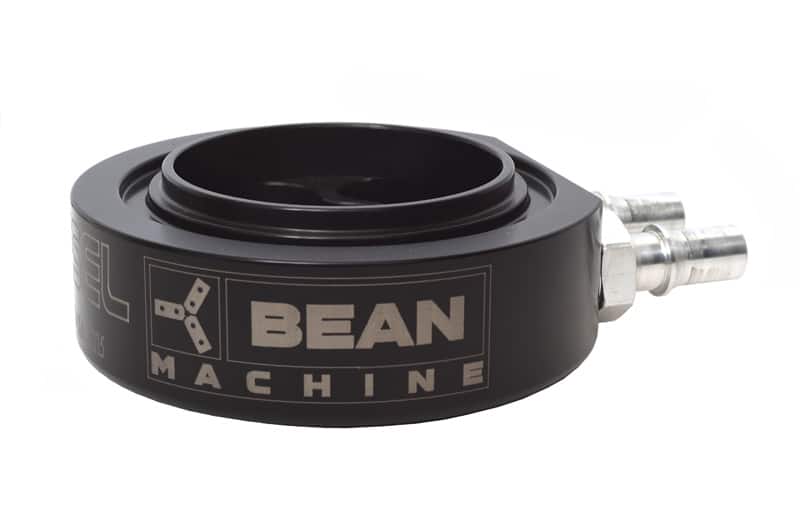

New and approved design! Beans multi function sump (supply/return into one). What we have done at BDP is step the tank sump up a notch. Made from 6061 Billet aluminum, this guy is built like a tank and is super simple to install just like the previous BDP sump. While still using a no-tank drop design, we have made this sump to where it will install with 1 single bolt with one single 3″ hole in your tank. This means less places to leak and much quicker install. All of our Tank Sumps come with a 3″ hole saw, (so no extra trips to the hardware store), and all stainless hardware.  The single O-ring design creates the perfect seal insuring you have zero leaks. BDP sump features a whole new way of thinking.

This is the ORIGINAL 1 hole, 1 bolt fuel tank SUMP!!!   Our design works so well that even China companies have copied it, so buyer beware,  if the price is cheap and looks like our design!!!

Features:

-Supply/Return

or

-Normal Sump setup with one fitting for the supply

or

-For your higher horse power trucks duel outlet to get the extra fuel needed

-Uses all available fuel from the tank. No issues with sucking air when below ¼ tank. Perfect for use with today’s high flow lift pump systems.
-Stand pipe cut into the inside of the sump to reduce the amount of sediments that get to your filter system.
-Drain Plug for future tank servicing or sediment draining.
-Single bolt design that allows for 5 minute install as well as less chances for leaks that other tanks sumps may have when using multiple bolts drilled into the tank.
-Stainless Steel hardware and QDC/Push-lock fitting provided.
-Comes with 3” hole saw to make the only hole needed in your tank for install.
-Inner ring designed to go through the 3” hole so tank does not need to be dropped.
-O-ring design for a perfect seal.
-Super strong 1 piece machined billet design.
-Can be installed on any fuel tank with an available 4” diameter flat area

-DESIGNED AND MANUFACTURED AT OUR FACILITY, IN THE USA!!!

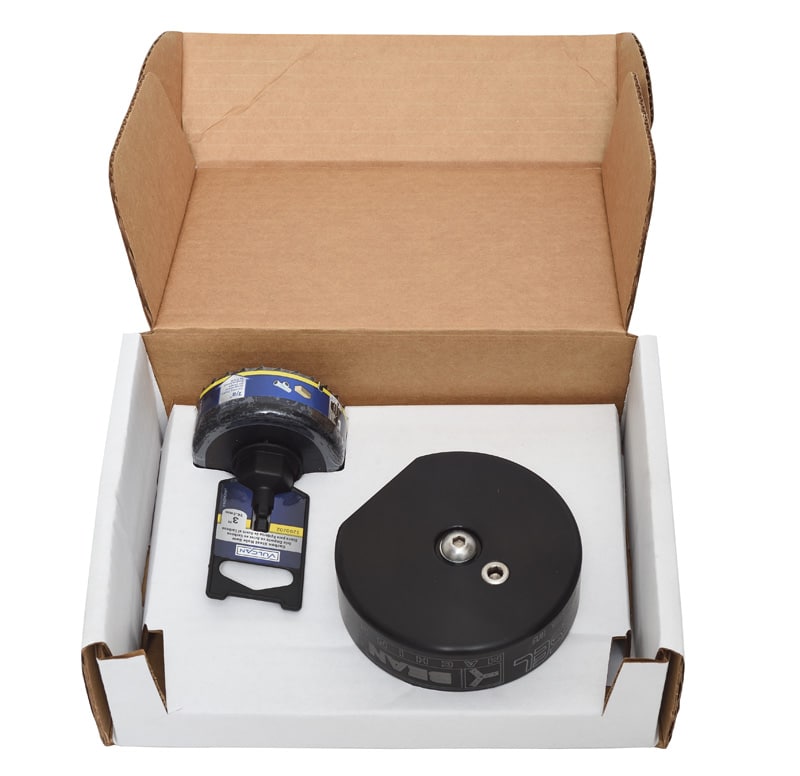

Kit Includes:

-Sump Body

-Sump Pacman

-3″ Hole Saw

-Stainless Steel Bolt

-Sealing Washer

-O-Ring

-(2) -8 O-Ring Boss (ORB) to 1/2″ QDC/Push-lock Fittings (With O-Ring)

-(1) -8 O-Ring Boss (ORB) Plug For Sumps (With O-Ring)

-Stainless Steel Plug Fitting
