Description
This complete kit comes with everything you need to install our IDP_364.5 turbo on the OBS (94-97 trucks) turbo included, just choose housing but on the 364.5 we recommend the .91 99% of the time. Use this bypass tube kit if you are not wanting to install or run an intercooler. This turbo is meant to compare directly to its SXE counterpart but at a better price point!
This kit is for the crowd looking to be around the 300-500hp mark, our Irate turbo has great driving characteristics, fast spool up and is the go-to for towing! This kit works great with STOCK Injectors to 238/100 hybrids!
Comes with the boots needed to connect to 3″ plenums. (Must have 3″ inlet plenums to run bypass tube)
Key IDP_364.5 Turbo Features:
-7×7 Blade Compressor wheel and SXE exhaust wheel
-T51R mod on all turbos
-360 degree thrust bearing
-Forged milled (Billet) compressor wheel
-Flexible compressor cover outlet option
-Optimized compressor cover aerodynamic
-ONE YEAR WARRANTY
-MADE IN USA!!!!
We will always recommend an intercooler especially if you are towing heavy but this kit will work great for the average OBS daily driver that wants something better than a “drop in” but does not want to do a full intercooler install at this time. Later if you are wanting an intercooler you can just buy the Intercooler itself, a bracket kit, boots and the intercooler pipes.

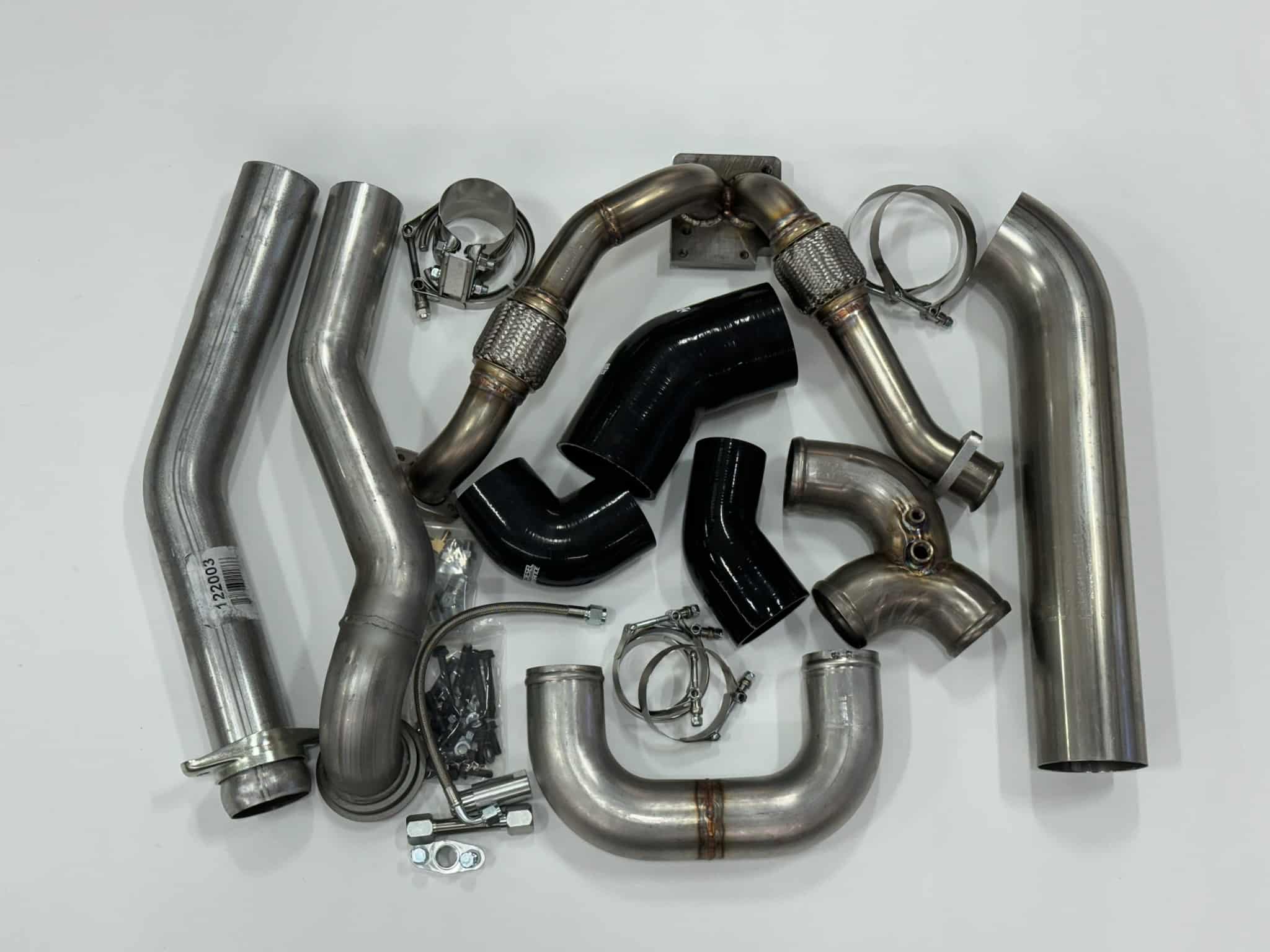

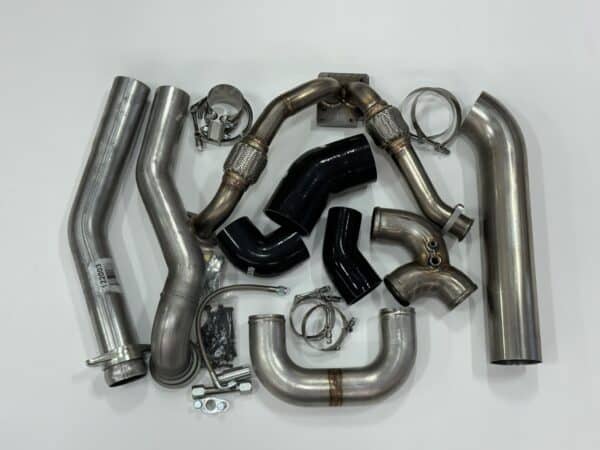

- Turbo Kit Parts list
1 Pedestal OBS/SD
1 L Bracket OBS/SD
1 Bellowed Up-pipe Assembly OBS/SD
1 Braided Oil supply line OBS/SD
1 Stainless Oil drain line OBS/SD
1 Aluminum turbo drain flange OBS/SD
1 Aluminum valley drain flange W/O-ring OBS/SD
1 Stainless Intake Y OBS/SD
1 Bypass tube with boots and clamps OBS
1 4” stainless intake pipe OBS/SD
1 Downpipe lower and upper section OBS 3”, SD 4”. OBS/SD
1 4” V-band clamp SD downpipe upper to lower connection SD
1 3.5” or 4” v-band for S300 or S400 style turbo OBS/SD
1 Band clamp for 2 piece OBS downpipe connection OBS
1 Compressor intake boot. 4” for S300, 5” for S400 & 5.5” for Race cover. OBS/SD
2 Clamps for intake boot to turbo and intake pipe. OBS/SD
1 3/8”NPT X 10JIC 45* fitting OBS/SD
1 1/2”NPT x 10JIC 45* fitting OBS/SD
1 1/8”NPT x 6JIC straight fitting OBS/SD
1 1/4”NPT x 6JIC straight fitting OBS/SD
1 3/8″ plug for intake Y, not used on SD OBS
1 Pedestal O-rings OBS/SD
9 M8 flange bolts for pedestal and up-pipes OBS/SD
4 M10 studs with flat washers and nuts OBS/SD
4 M8x40 flange bolts and locking flange nuts, up-pipe to manifold. OBS/SD
